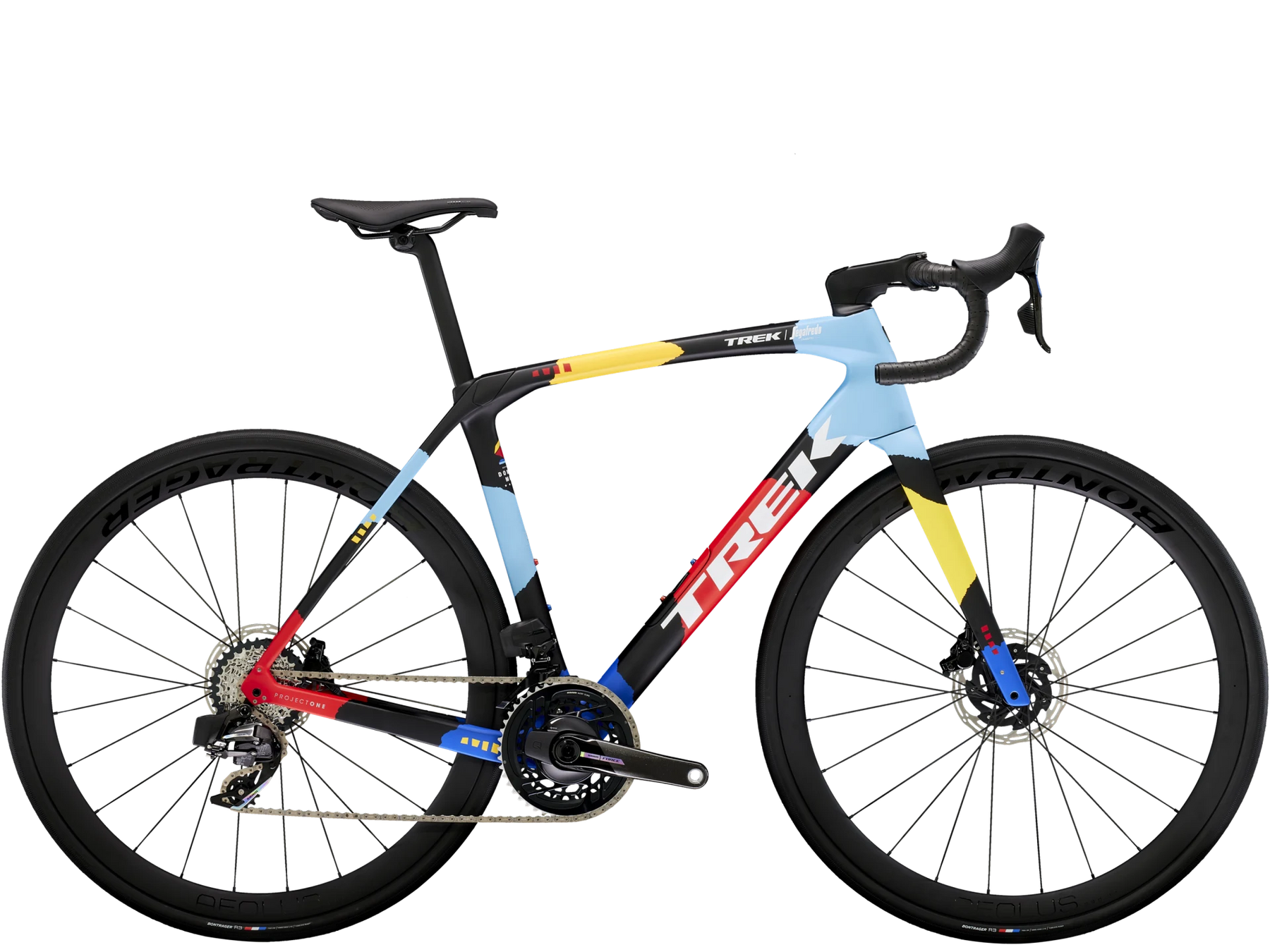

The Domane SLR 7 AXS is an ultra-light carbon endurance road bike decked out with the high-end parts made for long and fast, high-performance rides. You get our highest-level 800 Series OCLV Carbon frame with rear IsoSpeed, a wireless SRAM Force AXS D2 electronic drivetrain for precision shifting and OCLV Carbon wheels. Plus, it has an easy-access storage compartment for stowing ride essentials, and versatile 38 mm tyre clearance to keep you floating on rough roads and light gravel.
It's right for you if...
You want the perfect balance of comfort for the long haul, comfort when the road turns to gravel and a race-worthy spec. You want a seriously advanced endurance road bike frame we offer, with the added benefit of a wireless electronic SRAM Force AXS D2 drivetrain for fast, reliable shifting in any condition.
The tech you get

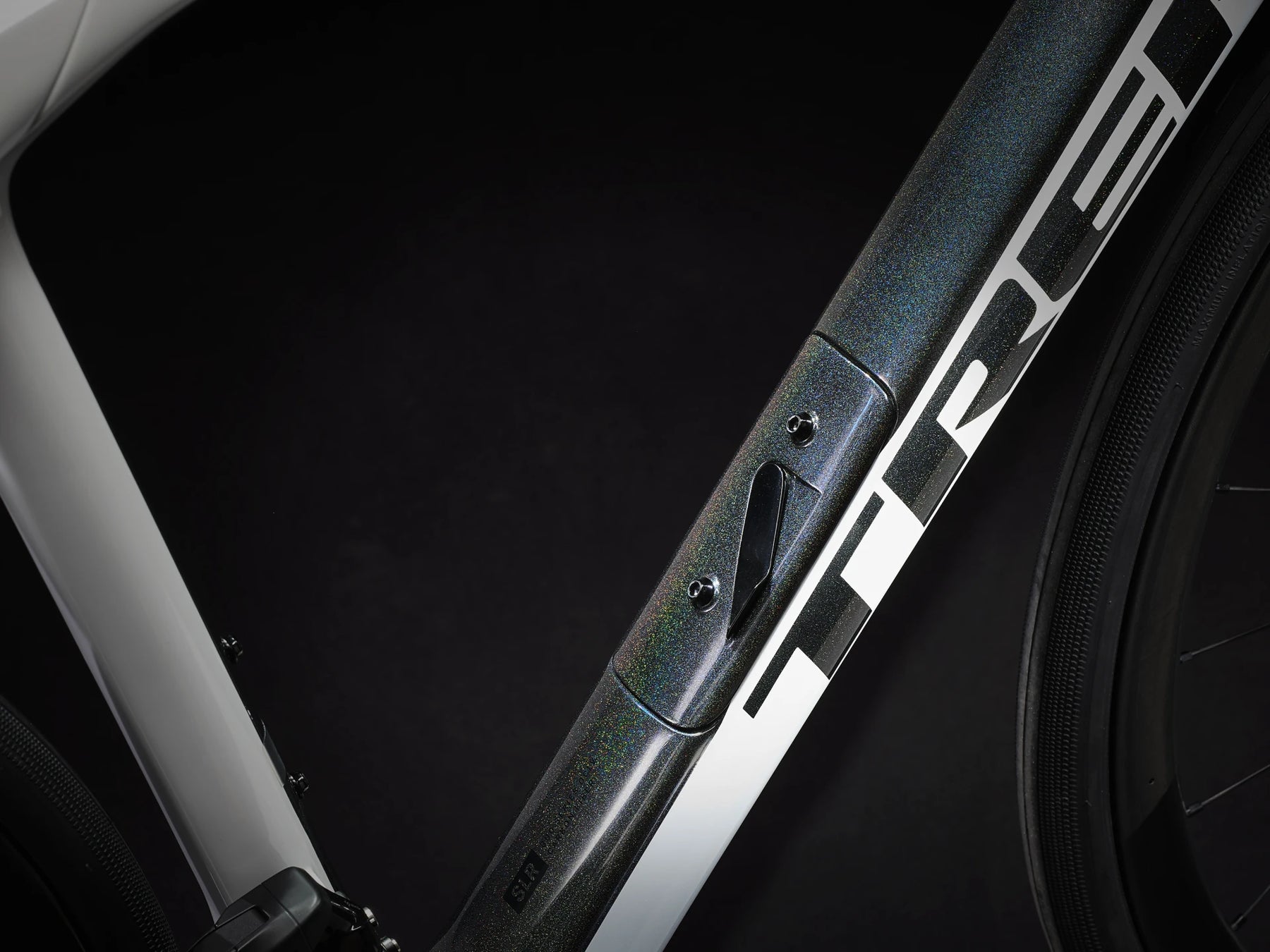

An ultra-light and refined 800 Series OCLV Carbon frame and fork with rear IsoSpeed, integrated internal storage and top tube mounts. It's equipped with a wireless SRAM 2x12 Force AXS D2 electronic drivetrain, power meter cranks for monitoring performance metrics, powerful flat-mount disc brakes, Aeolus Pro 37 carbon wheels and a Bontrager Pro IsoCore handlebar that reduces vibrations from the road by 20% over a standard carbon bar.
The final word
Our highest-end Domane carbon frame, with the precision shifting that comes only from wireless SRAM Force AXS D2. You're getting tech that provides a real advantage in comfort, reliability and speed during all-day adventures, competitive group rides or long races.
Specifications
*Please note – spec applies to all sizes unless listed separately
| Frame | 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle |
|---|---|
| Fork | Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100 mm thru axle |
Weight
| Weight | 8.20 kg / 18.08 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
E-system
| Battery | SRAM eTap battery pack (with charger) |
|---|
Drivetrain
| Shifter | SRAM Force AXS D2, 12-speed |
|---|---|
| Front derailleur | SRAM Force AXS D2, braze-on |
| Rear derailleur | SRAM Force AXS D2, 36T max cog |
| *Crank |
Size: 47 SRAM Force AXS D2 w/ power meter, 46/33, DUB, 165 mm length |
|
Size: 50, 52 SRAM Force AXS D2 w/ power meter, 46/33, DUB, 170 mm length |
|
|
Size: 54, 56 SRAM Force AXS D2 w/ power meter, 46/33, DUB, 172.5 mm length |
|
|
Size: 58, 60, 62 SRAM Force AXS D2 w/ power meter, 46/33, DUB, 175 mm length |
|
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM Force XG-1270, 10-33, 12 speed |
| Chain | SRAM Force, 12-speed |
| Max. chainring size | 1x: 48T, 2x: 52/36 |
Wheels
| Wheel front | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100x12 mm thru axle |
|---|---|
| Wheel rear | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless-Ready, 37 mm rim depth, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer front | Bontrager Switch thru-axle, removable lever |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | 38mm without mudguards, 35mm with mudguards |
Components
| *Saddle |
Size: 47, 50, 52 Verse Short Elite, hollow magnesium rails, 155 mm width |
|---|---|
|
Size: 54, 56, 58, 60, 62 Verse Short Elite, hollow magnesium rails, 145 mm width |
|
| *Seatpost |
Size: 47, 50, 52, 54, 56 Domane carbon seat post, KVF shaping, 20 mm offset, 280 mm length |
|
Size: 58, 60, 62 Domane carbon seat post, KVF shaping, 20 mm offset, 320 mm length |
|
| *Handlebar |
Size: 47 Bontrager Pro IsoCore VR-SF, 38cm |
|
Size: 50, 52 Bontrager Pro IsoCore VR-SF, 40cm |
|
|
Size: 54, 56 Bontrager Pro IsoCore VR-SF, 42cm |
|
|
Size: 58, 60, 62 Bontrager Pro IsoCore VR-SF, 44cm |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem |
Size: 47 Trek RCS Pro, -7-degree, 70 mm length |
|
Size: 50 Trek RCS Pro, -7-degree, 80 mm length |
|
|
Size: 52, 54 Trek RCS Pro, -7-degree, 90 mm length |
|
|
Size: 56, 58 Trek RCS Pro, -7-degree, 100 mm length |
|
|
Size: 60, 62 Trek RCS Pro, -7-degree, 110 mm length |
|
| Brake | SRAM Force AXS hydraulic disc |
| Brake rotor | SRAM CentreLine X, CentreLock, round edge, 160 mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
