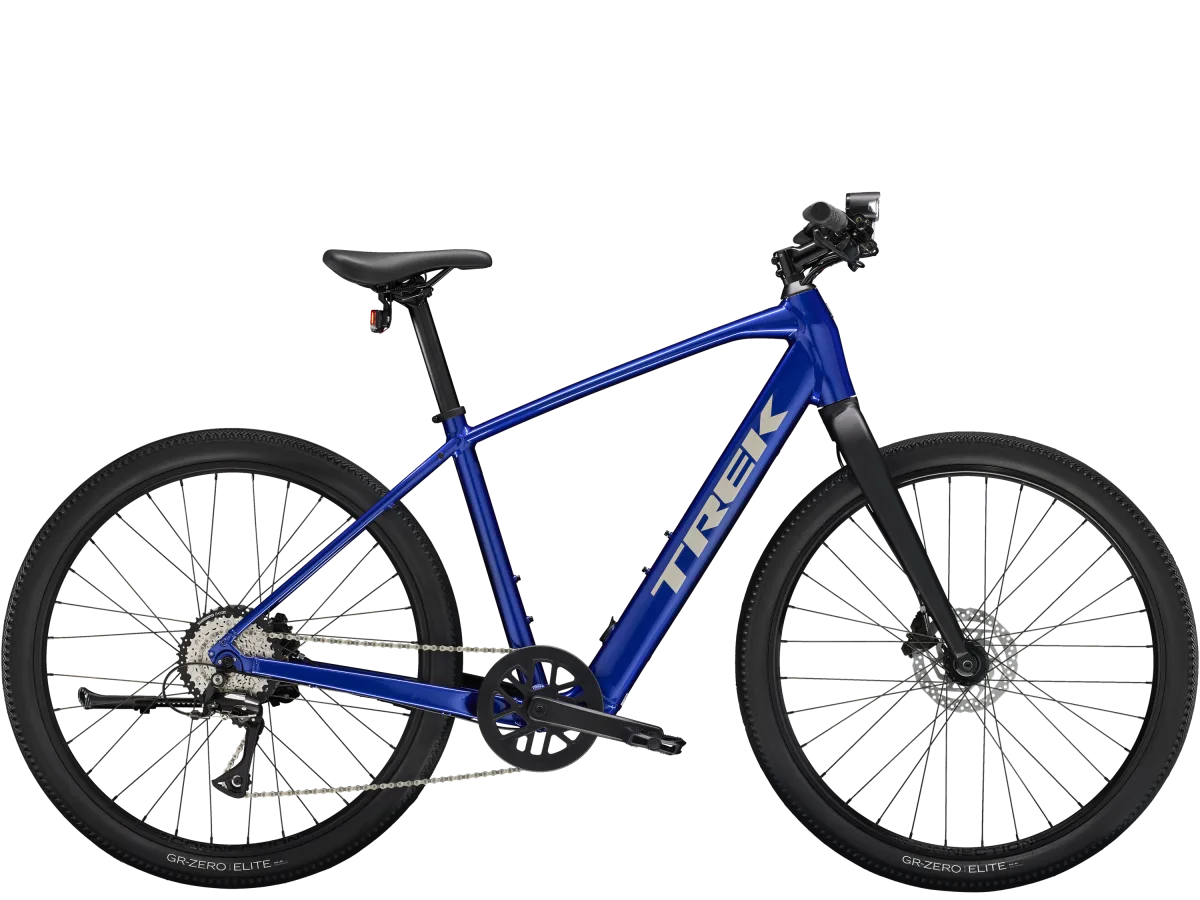

The Dual Sport+ 2 LT is a lightweight and capable hybrid electric bike that’s designed for adventure on tarmac and light trails. It has an intuitive and natural-feeling pedal assist system that makes exploring your surroundings more fun and cruising up hills a breeze. Plus, stiff wheels and wide tyres give you confidence on varied terrain.
It's right for you if...
You want a lightweight, simple-to-use hybrid e-bike that brings a capable boost to daily errands and rides as well as weekend adventures.
The tech you get
A lightweight aluminium frame and fork, Trek's proprietary pedal assist system by Hyena with a hub motor (250 W, 40 Nm) that assists up to 20 mph (25 km/h in Europe) and a 250 Wh battery for a range of up to 35 miles (55 kilometres) per charge. Plus, stiff 650b wheels and wide 50c tyres for capability and comfort on varied terrain, a reliable 8-speed Shimano drivetrain, hydraulic disc brakes, integrated lights powered by the battery and a kickstand.
The final word
All the capability and confidence of Dual Sport, with an electric boost that helps you do more! The Dual Sport+ LT lets you haul groceries uphill with ease and adventure further than you thought possible.
| Frame | Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, kickstand mount |
|---|---|
| Fork | Alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Skewer front | 132x5 mm QR |
| Hub rear | Hyena hub drive motor, 40 Nm, 250 W |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager GR0 Comp, wire bead, 60 tpi, 650x50 mm |
| Max tyre size | 27.5x2.00" |
E-system
| Battery | 250 Wh, integrated in down tube |
|---|---|
| Charger | 2A, 42V output, 100V–240V AC input |
| Computer | LED display |
Drivetrain
| Shifter | Shimano M315, 8-speed |
|---|---|
| Rear derailleur | Shimano Acera M3020-8, 40T max cog |
| *Crank |
Size: S, M ProWheel Pro alloy, 42T narrow-wide steel ring, 170 mm length |
|
Size: L, XL ProWheel Pro alloy, 42T narrow-wide steel ring, 175 mm length |
|
| Bottom bracket | Torque sensor, threaded, 122.5 mm spindle |
| Cassette | Shimano HG400, 11-40, 8-speed |
| Chain | KMC Z8.3 |
| Pedal | Bontrager City pedals |
| Max. chainring size | 1x: 42T |
Components
| Saddle | Bontrager Sport |
|---|---|
| *Seatpost |
Size: S, M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
Size: L, XL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| *Handlebar |
Size: S, M Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width |
|
Size: L, XL Bontrager alloy, 31.8 mm, 15 mm rise, 690 mm width |
|
| Grips | Bontrager XR Endurance Comp, lock-on |
| *Stem |
Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length |
|
Size: M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
|
|
Size: L, XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length |
|
| Brake | Shimano hydraulic disc, MT200 lever, UR300 calliper |
| Brake rotor | Shimano RT26, 6-bolt, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
Accessories
| *Light |
Size: S, M, L, XL Herrmans MR4, 120-lumen LED |
|---|---|
|
Size: S, M, L, XL Spanninga Solo |
|
| Kickstand | Pletscher Comp 18 |
Weight
| Weight | M - 17.35 kg/38.26 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
